Especificaciones técnicas

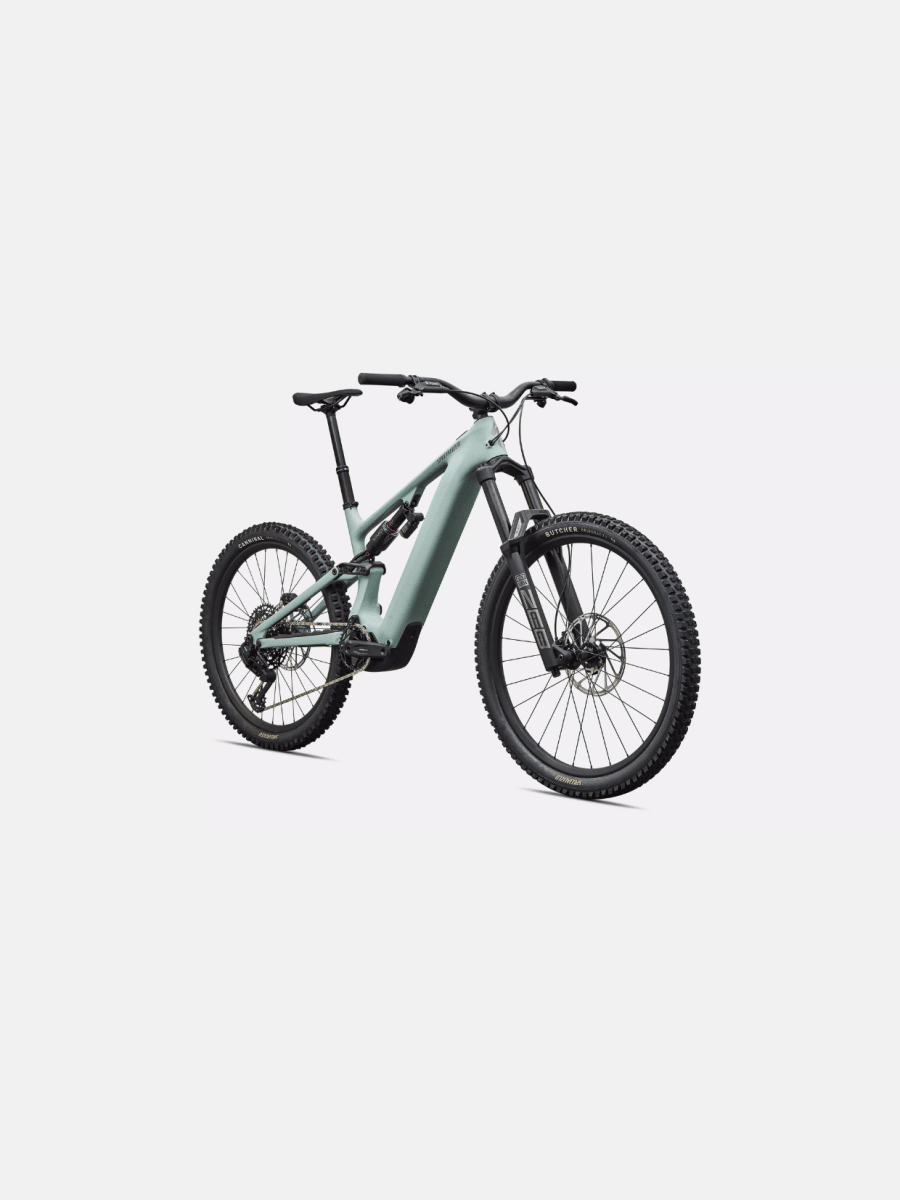

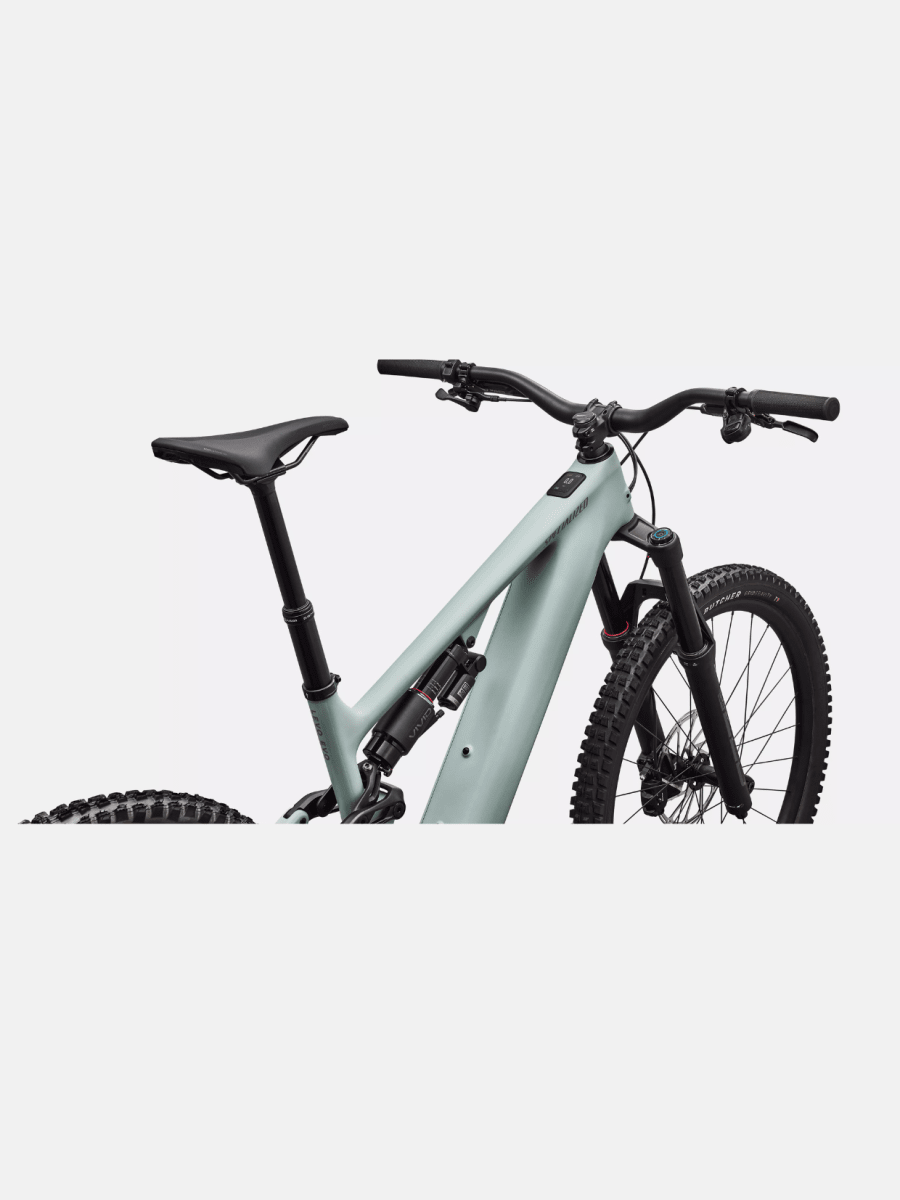

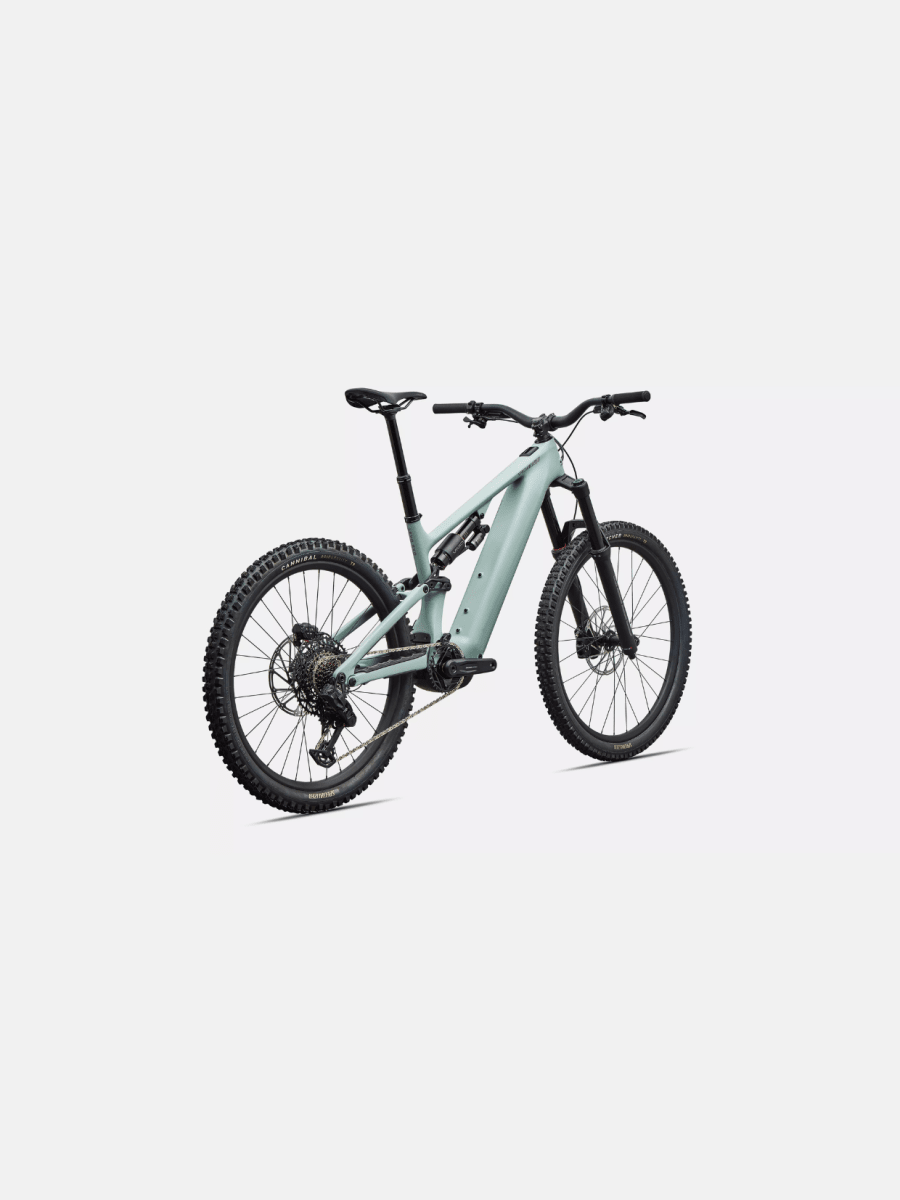

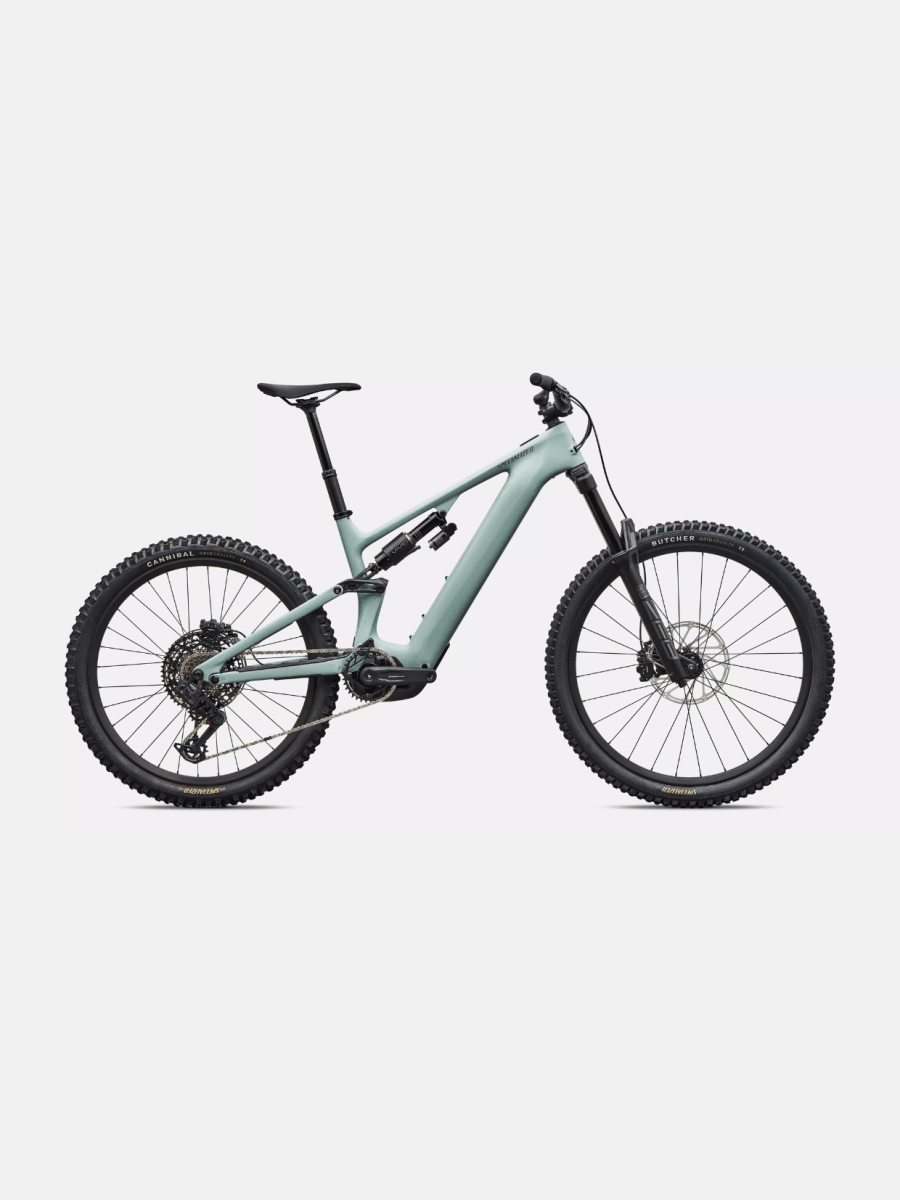

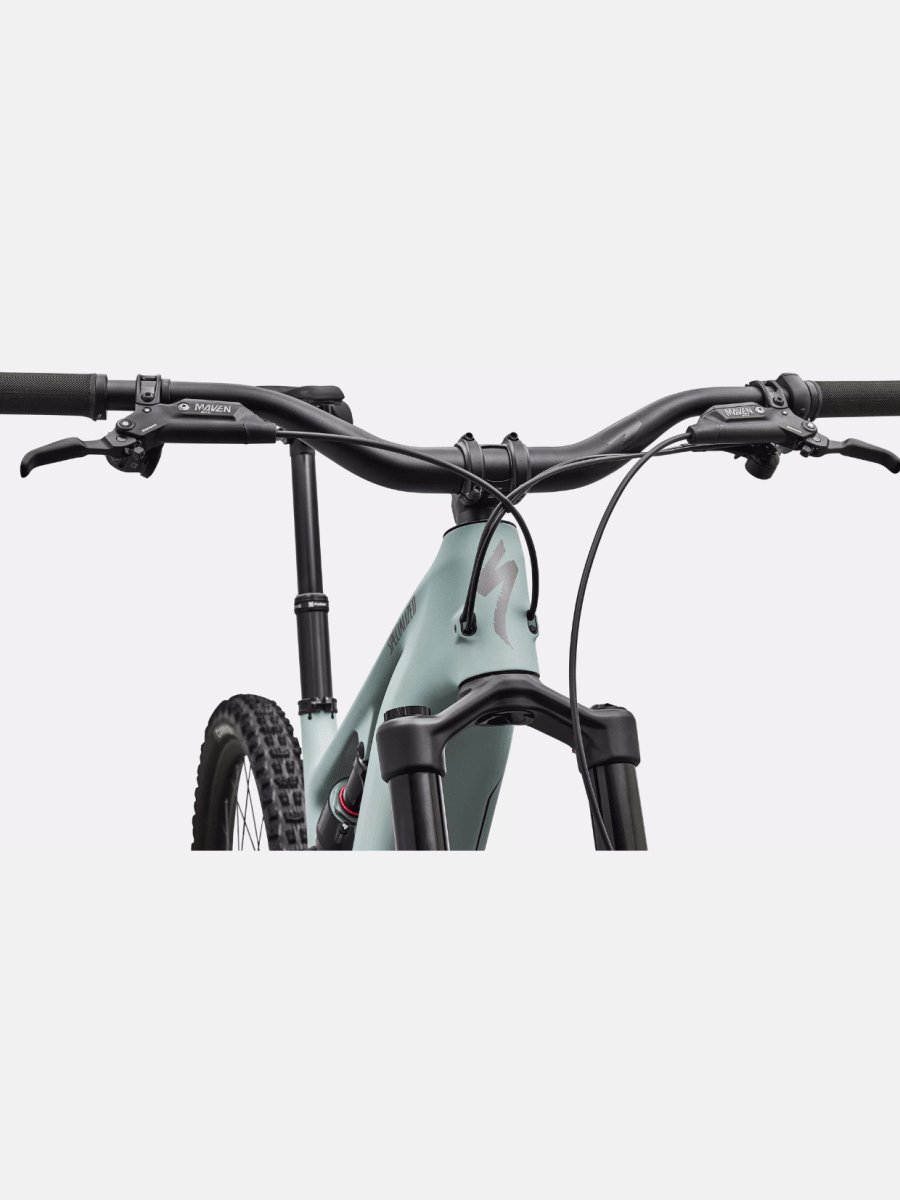

Turbo Levo 4 EVO Comp Carbon
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
Batería
840Wh battery
UI/Remoto
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Cargador
Specialized 4amp charger
Cuadro
Cuadro
Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
Abrazadera de Sillín
Alloy, 38.6mm

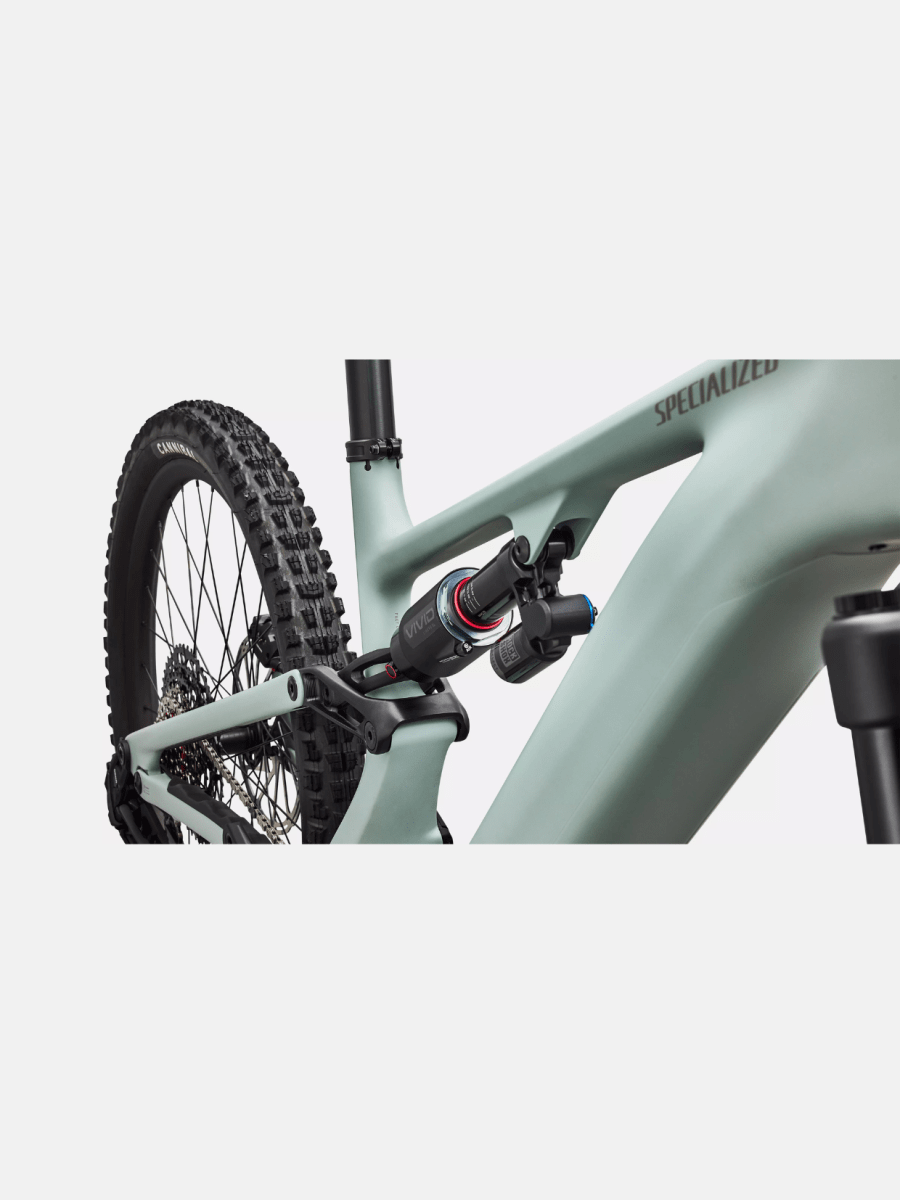

Suspensión
Amortiguador Trasero
All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust
Horquilla
All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust
Frenos
Freno Delantero
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Freno Trasero
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Transmisión
Palancas de Cambio
SRAM AXS Pod Controller w/discrete clamp
Desviador Trasero
SRAM S1000 Eagle AXS
Piñón
SRAM 12-speed,10-52t
Cadena
SRAM GX Eagle Transmission 12-Speed Flattop Chain
Set de Palancas
SRAM S1000 Alloy crank, ISIS interface, 155mm length
Plato
SRAM 34t T-Type chainring, 104 BCD, steel
Ruedas y Neumáticos
Aros
Specialized Alloy Rims
Maza Delantera
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Maza Trasera
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb
Rayos
DT Swiss Elemental
Neumático Delantero
Butcher, GRID Gravity, T9, TLR, 29x2.4"
Neumático Trasero
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Cámaras
Standard, Presta Valve
Stem
Alloy Trail Stem, 35mm bar bore
Manillar
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Puños
Specialized Trail Grips
Sillín
Bridge Comp, Hollow Cr-mo rails 155/143
Poste de Sillín
Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
SWAT
SWAT Internal downtube storage
ID de Producto
294787
Certificado de Compliance
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Peso
25.16 kg (55 lb, 7.5 oz)
Talle de Peso
S4
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
