Especificaciones técnicas

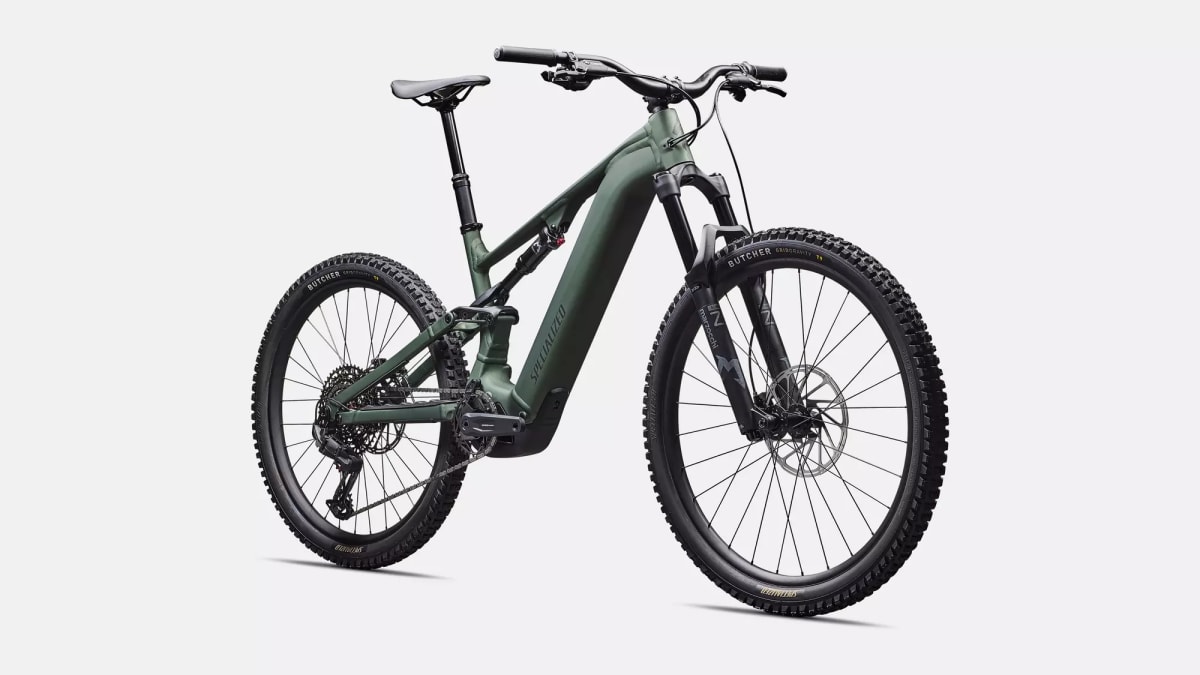

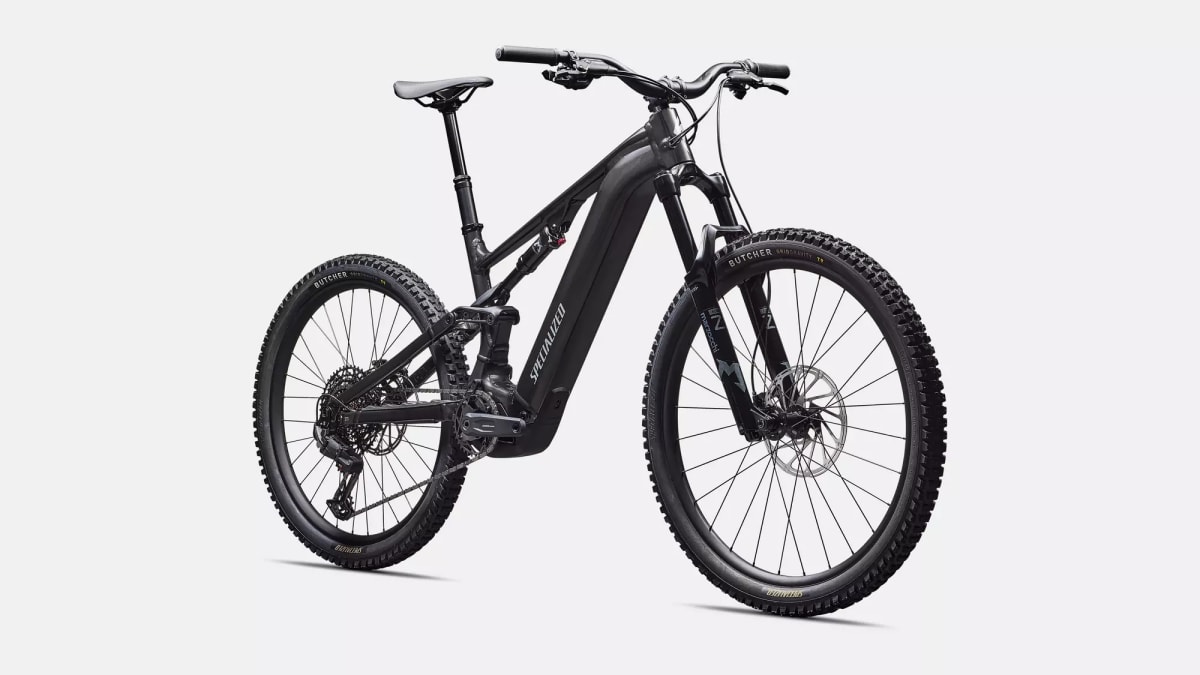

Bici Eléctrica

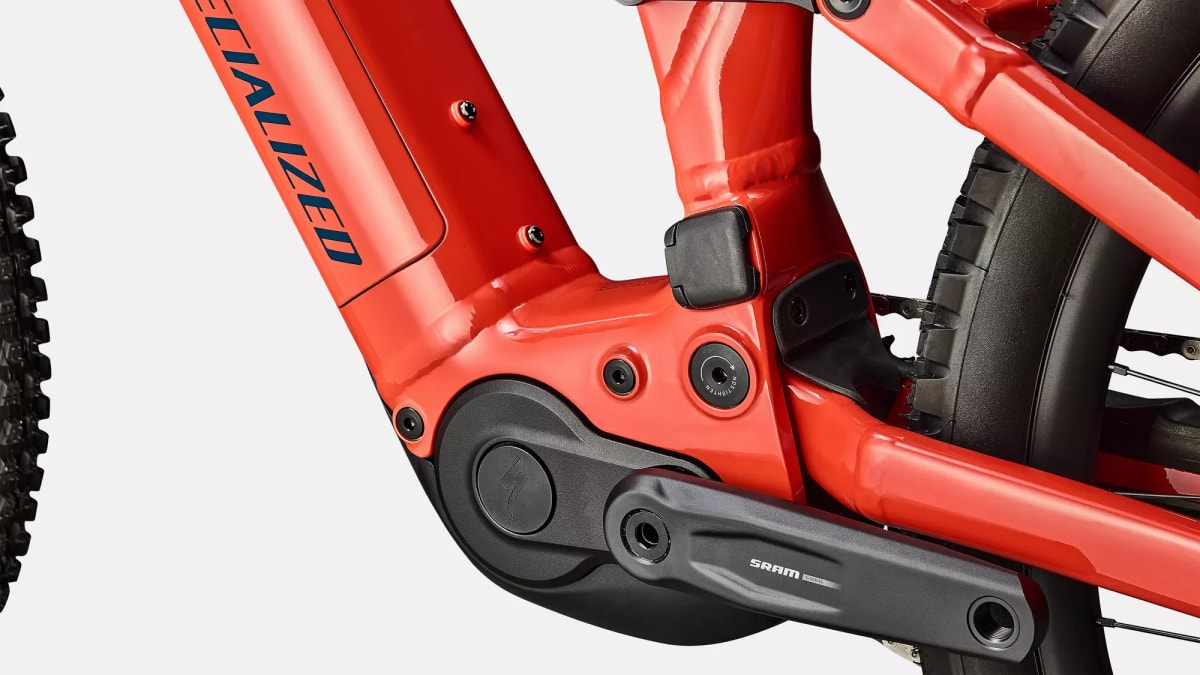

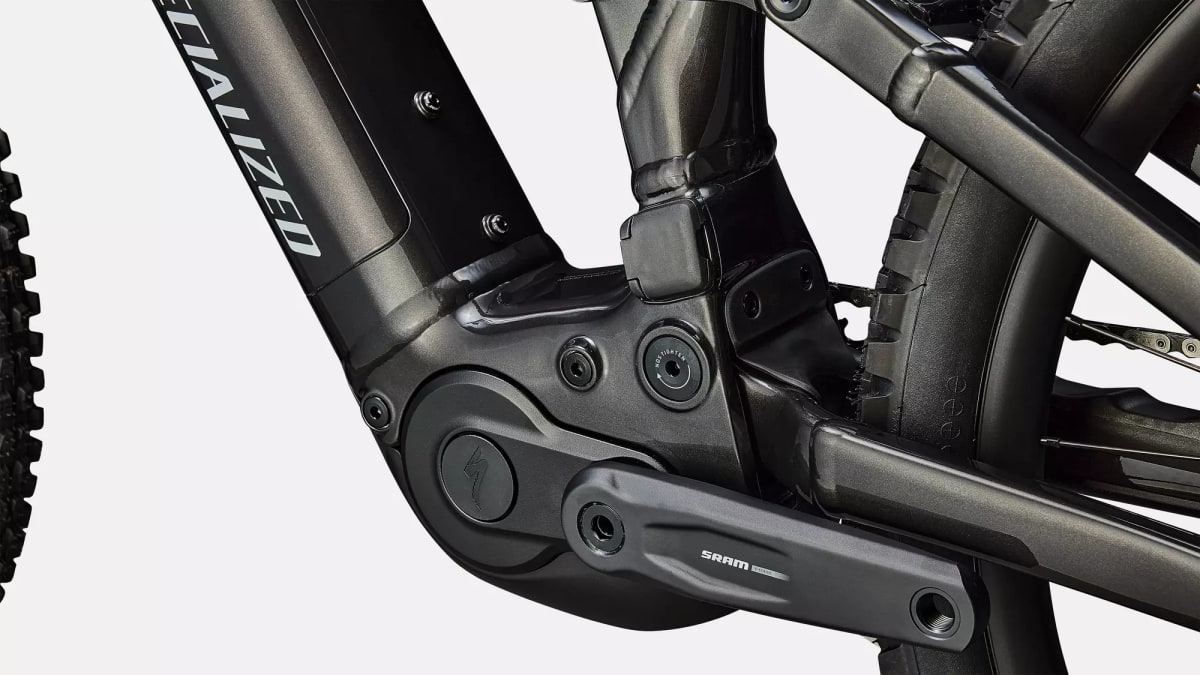

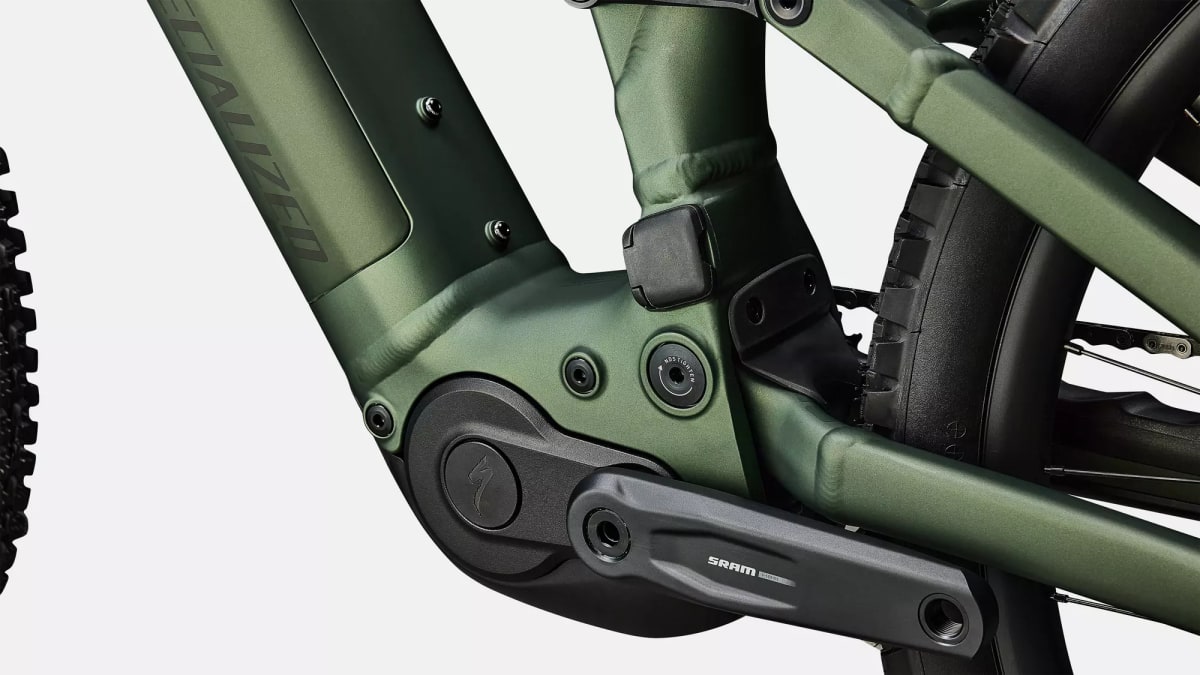

Motor:
All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
Batería:
840Wh battery

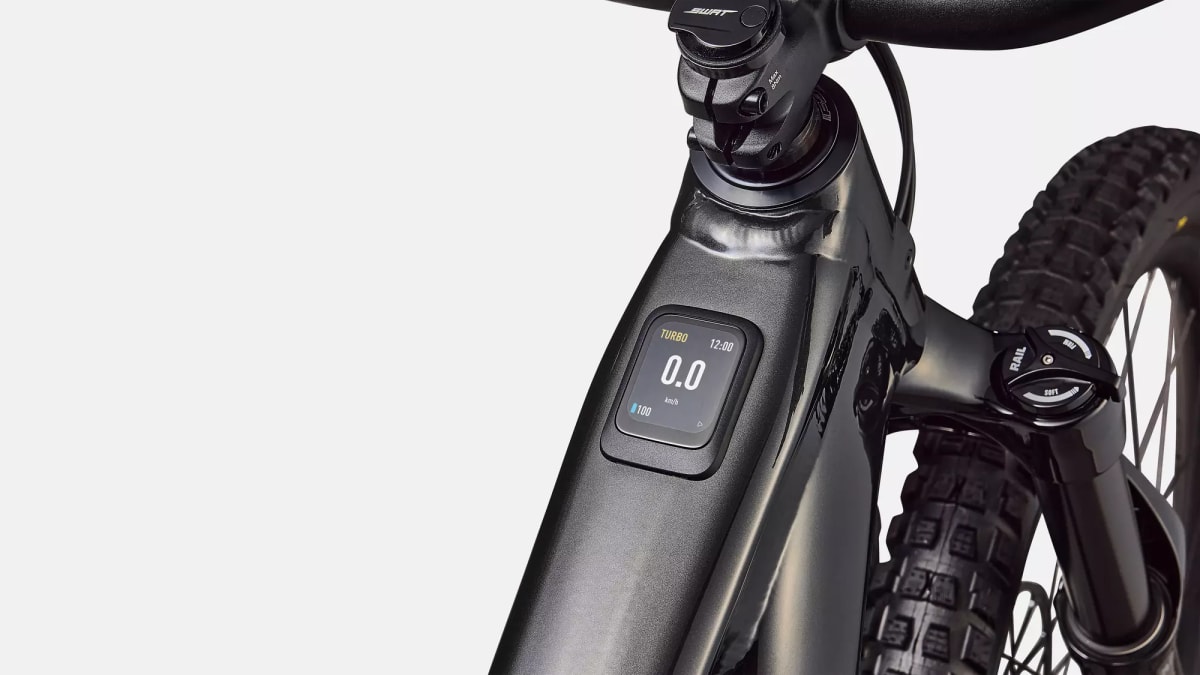

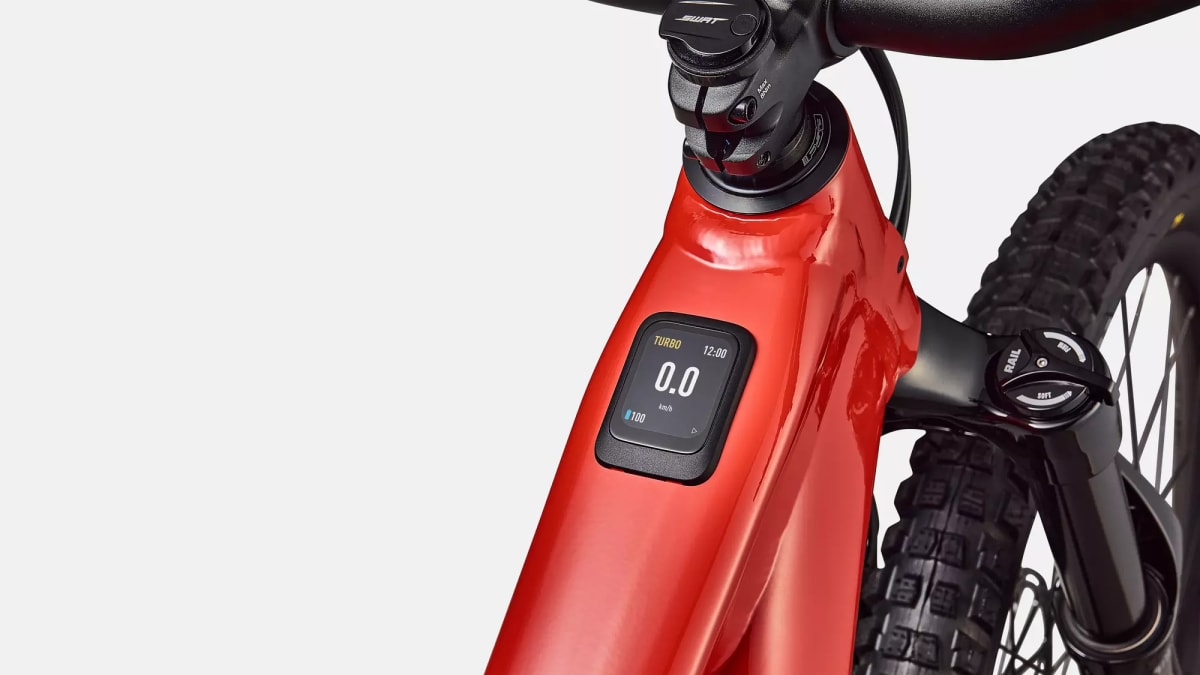

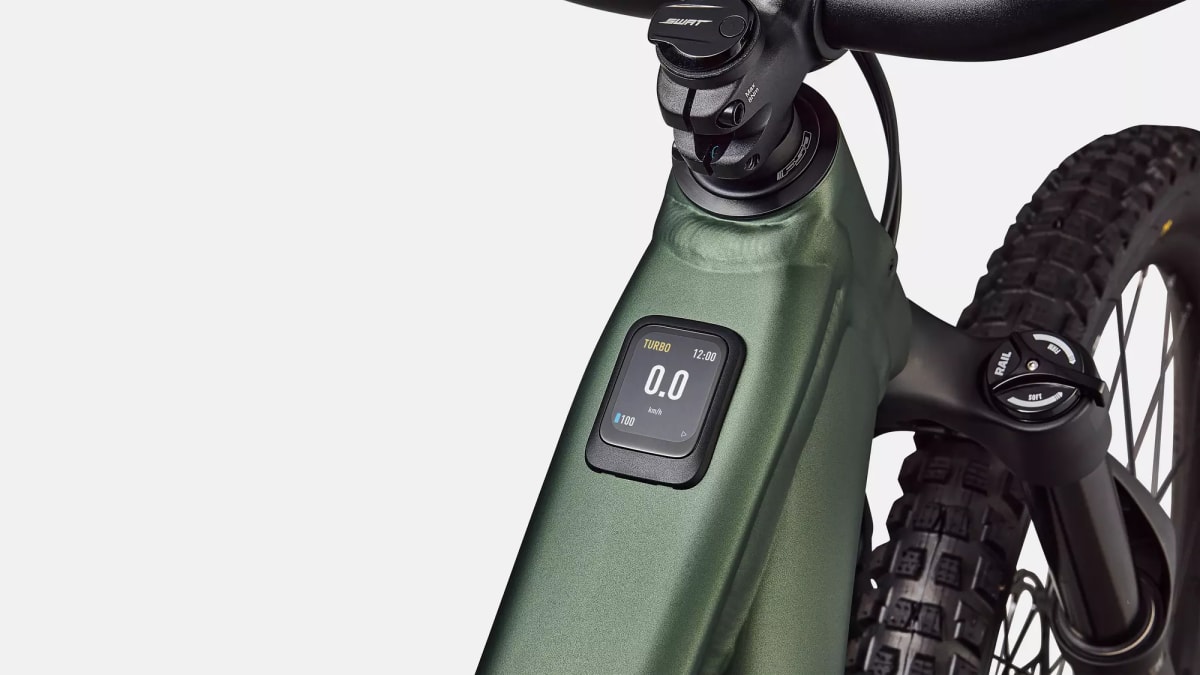

UI/Remoto:
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Cargador:
Specialized 4amp charger
Cuadro
Cuadro:
All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Abrazadera de Sillín:
Alloy, 38.6mm
Suspensión

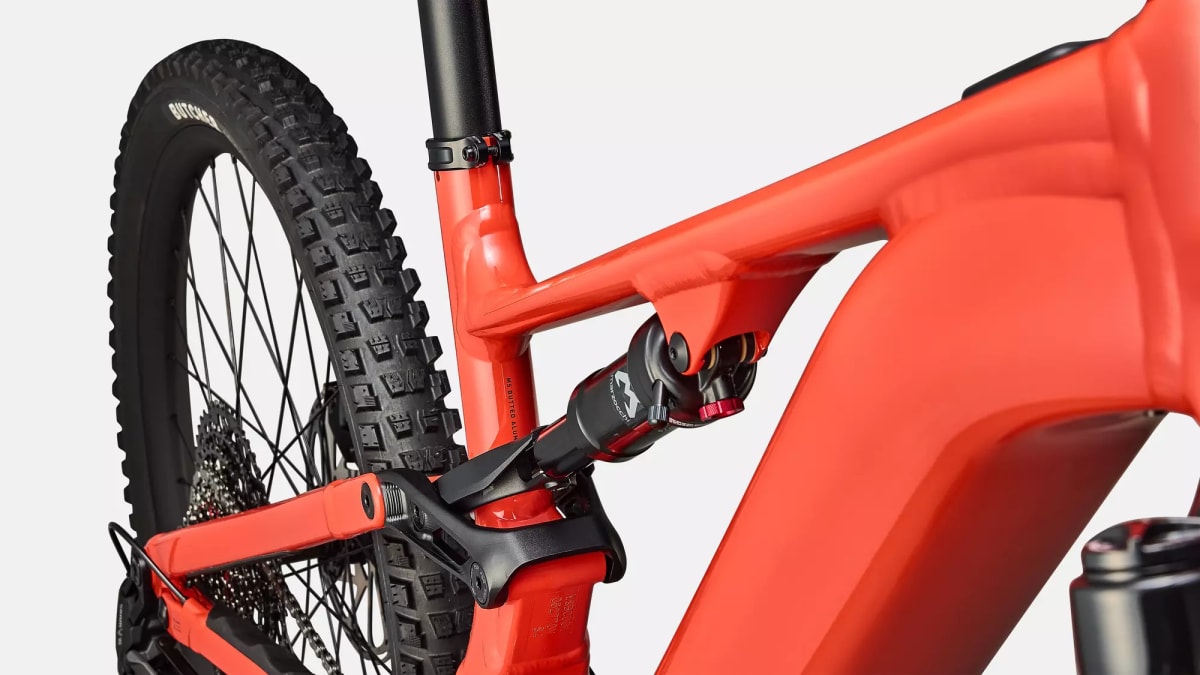

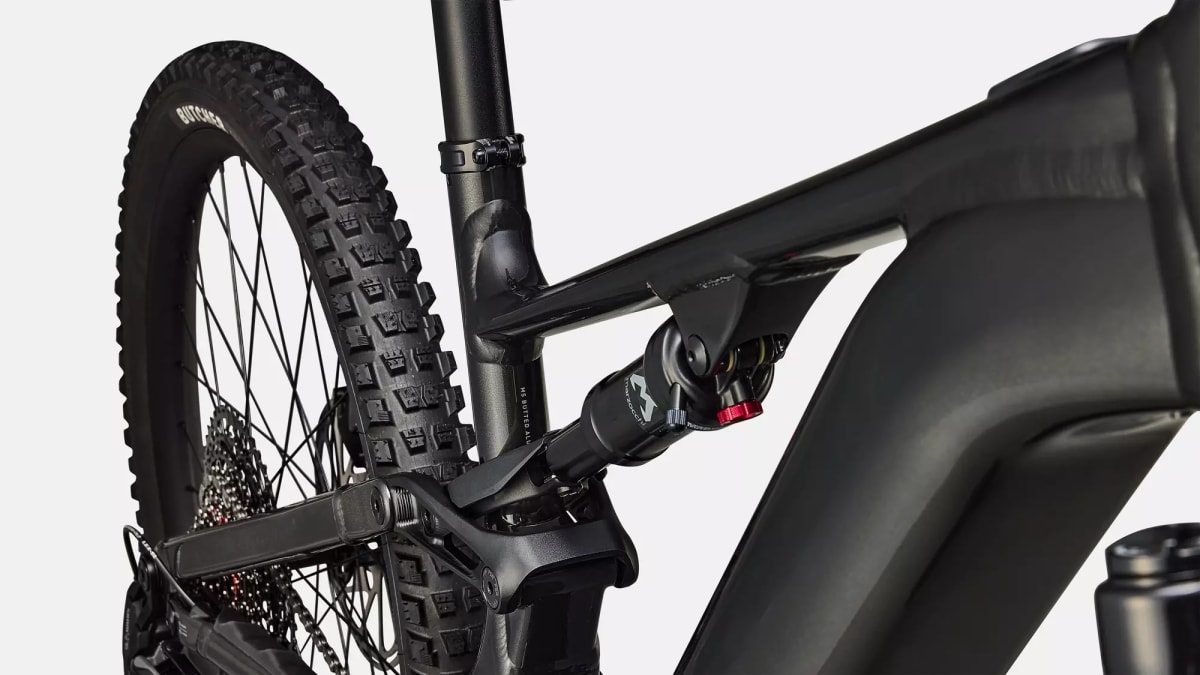

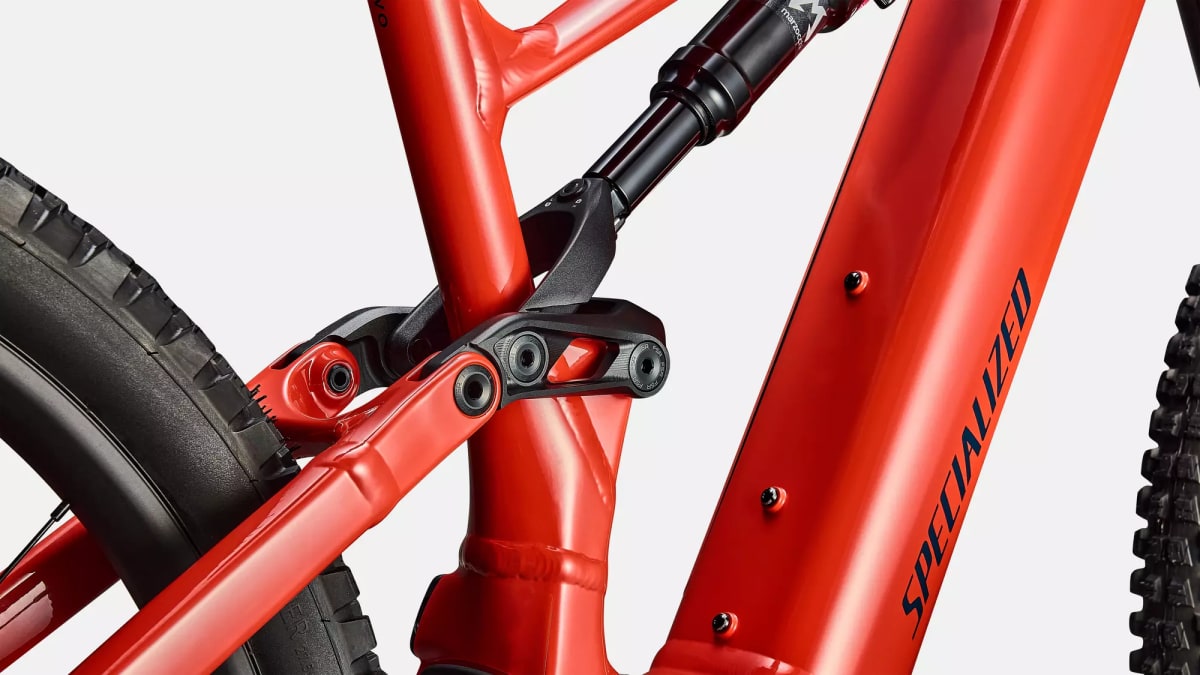

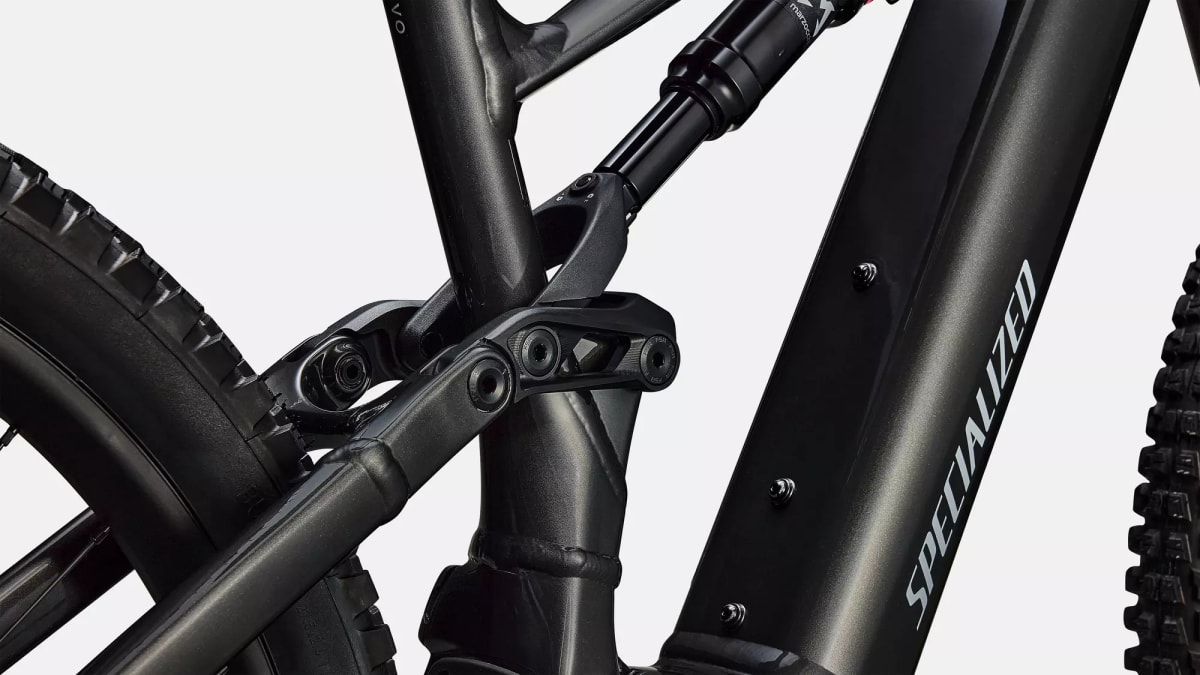

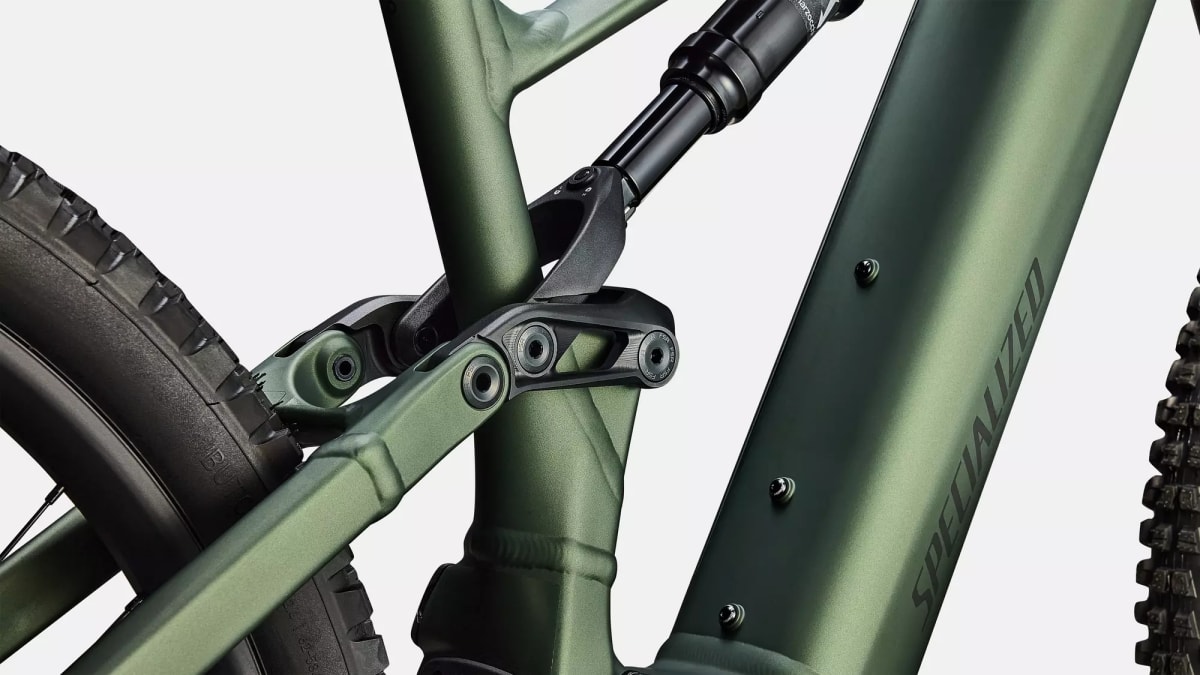

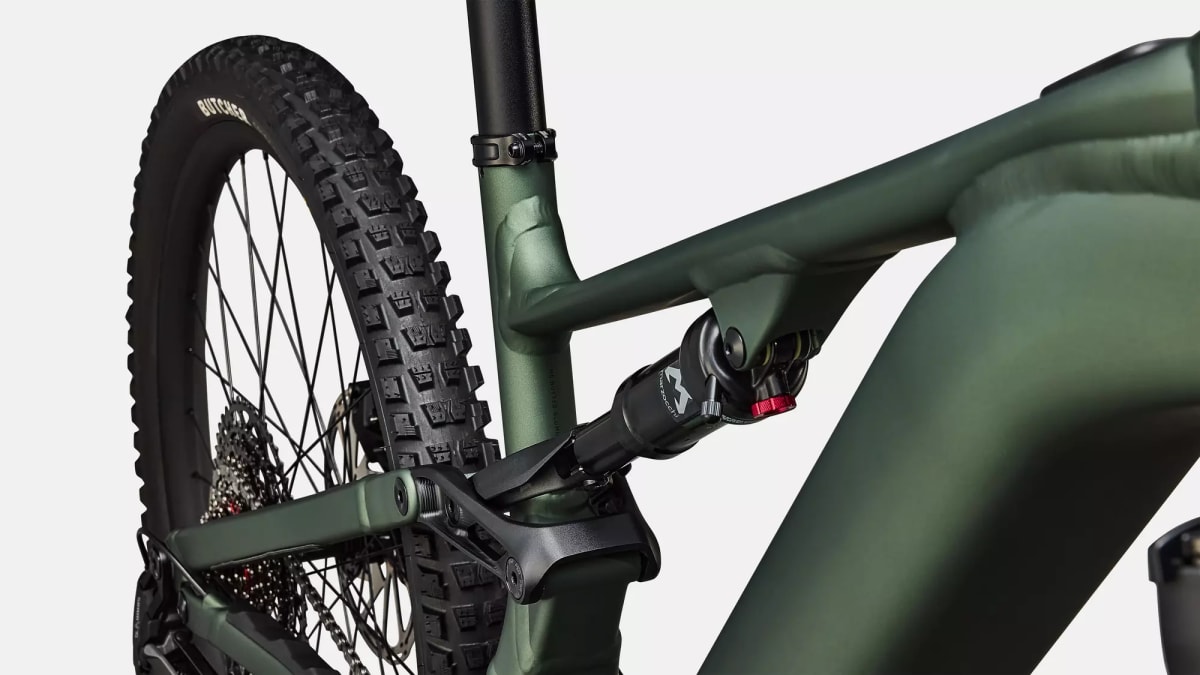

Amortiguador Trasero:
*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
Horquilla:
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Frenos
Freno Delantero:
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Freno Trasero:
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Transmisión
Palancas de Cambio:
SRAM 70 trigger, 12-speed, single click
Desviador Trasero:
SRAM Eagle 70 T-Type
Piñón:
XS-1270, 12-speed, 10-52t
Cadena:
SRAM Eagle 70 T-Type Flattop Chain
Set de Palancas:
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Plato:
SRAM 34t T-Type chainring, 104 BCD, steel
Ruedas y Neumáticos
Aros:
Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
Maza Delantera:
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Maza Trasera:
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rayos:
DT Swiss Industry
Neumático Delantero:
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Neumático Trasero:
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Cámaras:
Standard, Presta valve

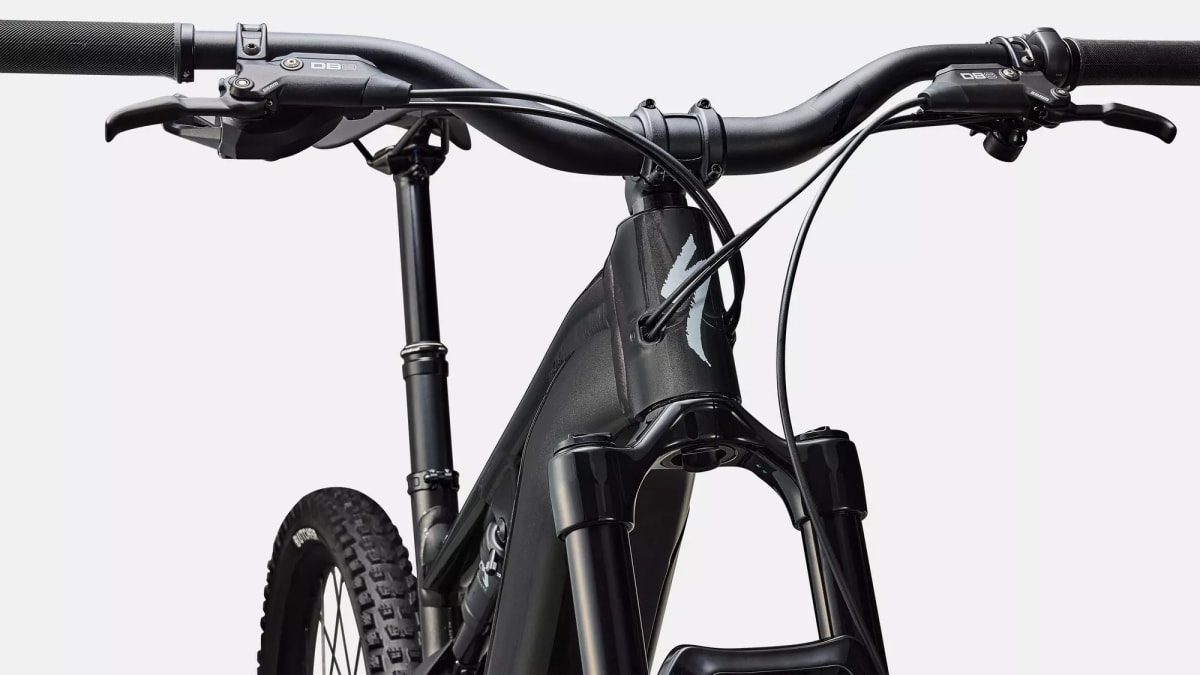

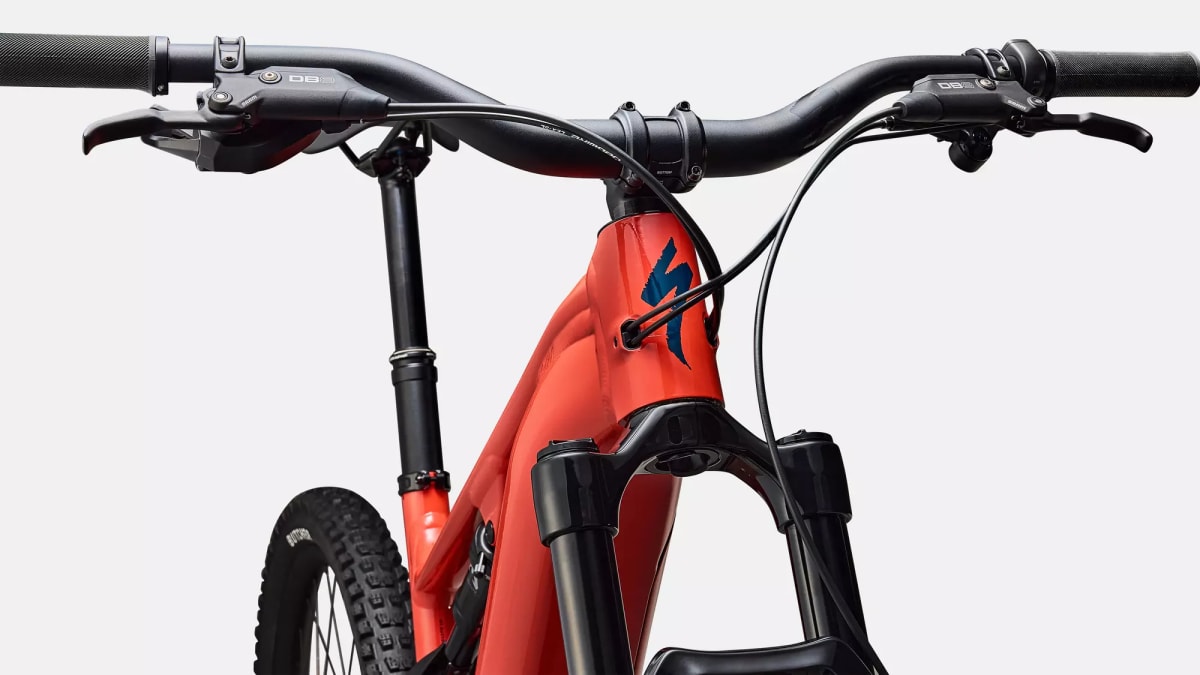

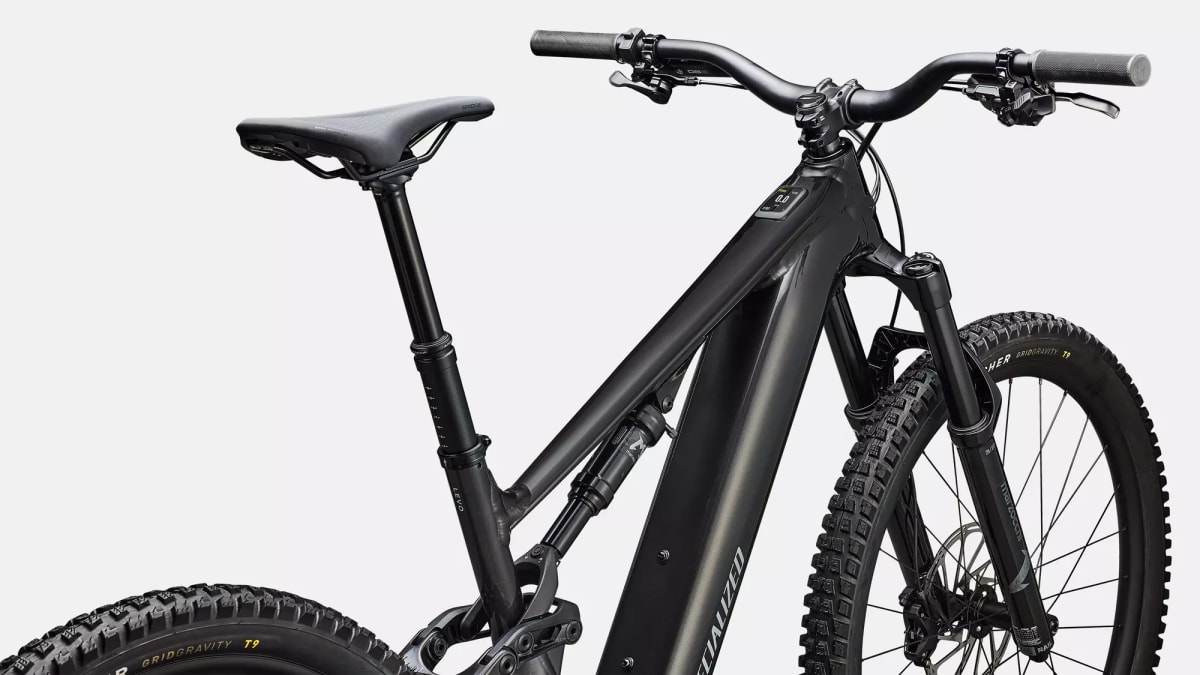

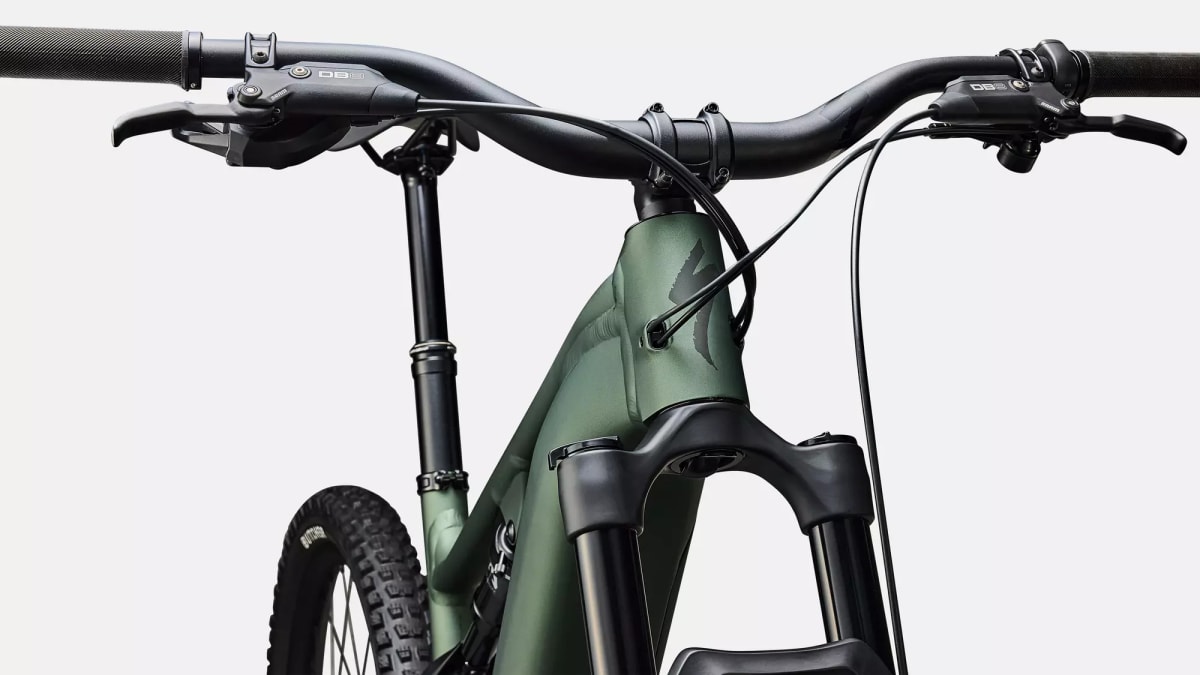

Cockpit
Stem:
Alloy Trail Stem, 35mm bar bore
Manillar:
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Puños:
Specialized Trail Grips
Sillín:
Body Geometry Bridge Saddle, steel rails
Poste de Sillín:
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
Accesorios
SWAT:
SWAT internal downtube storage
Detalles del producto
ID de Producto:
221347
Certificado de Compliance:
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Peso
Peso:
26.08 kg (57 lb, 7.8 oz)
Talle de Peso:
S4
* Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.
